Smart Motorized Zoom: Precision Lighting Control Solution
Our motorized zoom lighting fixture uses advanced electric adjustment technology, allowing precise beam angle control without manual operation. Users can quickly adjust the beam from spotlight to floodlight through a remote control or smart control system, meeting the lighting needs of various scenarios. This fixture not only enhances ease of use but also significantly improves work efficiency. It is ideal for applications such as shopping malls and exhibition halls, offering a more flexible lighting experience
Download
Specification
| Type | BJ-03-30W | BJ-03-30W |
| Power(w) | 30W | 30W |
| Input Voltage(v) | 220-240V | 220-240V |
| Frequency(Hz) | 50/60Hz | 50/60Hz |
| Power Factor (PF) | >0.9 | >0.9 |
| Classification of protection against electric | I | I |
| SPD (differential-mode and common-mode) | 1KV | 1KV |
| THD | <20% | <20% |
| SVM | <1 | <1 |
| PST | ≤1 | ≤1 |
| ColorTemperature(k) | 2700K/3000K/4000K/5000K/5700K | 2700K/3000K/4000K/5000K/5700K |
| Light luminous flux(Tolerance range±10%) | 2640lm | 2640lm |
| Light Efficiency(Tolerance range±10%) | 75-89 LM/W | 75-89 LM/W |
| CRI | ≥90 / ≥97 | ≥90 / ≥97 |
| SDCM | <6 | <6 |
| Beam Angle (50%) | 15°- 40° | 15°- 40° |
| LED patent | No | No |
| LED | TB7-1917A | TB7-1917A |
| LED COB number | 1 | 1 |
| Non-directional or directional (NDLS / DLS) | DLS | DLS |
| Luminous Efficacy(lm/w)@light source | E | E |
| Wiring | AAG / Eutrac 4 wires/6 wires | AAG / Eutrac 4 wires/6 wires |
| Dimmable | 2.4G RF | 2.4G RF |
| Output Voltage | DC36V | DC36V |
| Warranty/Guarantee Period | 3 years | 3 years |
| Ambient temperature Ta for claimed spec | 25℃ | 25℃ |
| Installation method/mounting type | Track | Track |
| Operating Temp. (℃) | -20℃~40℃ | -20℃~40℃ |
| Operation per day (on/off times and working duration) | 2 switch cycle per day, 8-10hrs working | 2 switch cycle per day, 8-10hrs working |
| Salty spray | 120H | 120H |
| Replaceable Light Source | No | No |
| IK Level | 5 | 5 |
| Ingress Protection Rating | IP20 | IP20 |
| Tilt angle | Adjustable 90º+350º | Adjustable 90º+350º |
| Certification | CE,RoHS | CE,RoHS |
Description
The motorized zoom lighting light is an innovative product that combines smart control with efficient lighting. Its electric adjustment technology allows users to easily adjust the beam angle via remote control, quickly adapting to different lighting scenarios and greatly improving work efficiency. Equipped with high-precision optical lenses, it ensures a uniform and soft beam, avoiding harsh spots. Compatible with smart home systems, it enables remote control and scene presets, further optimizing the user experience. Whether in exhibition halls, shopping malls, or art spaces, this light is the ideal choice for enhancing visual effects and convenience.
Application Scenarios

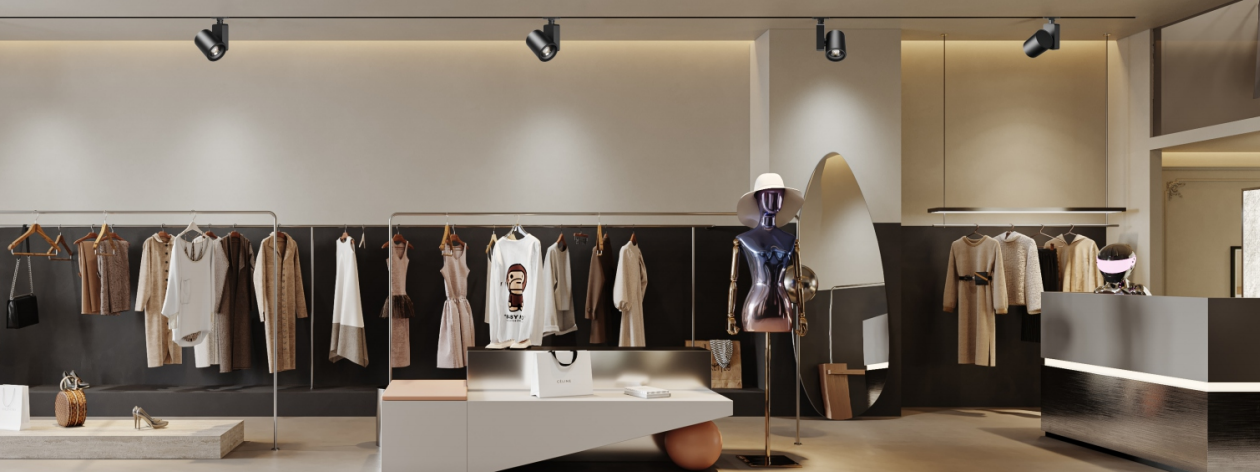

Commercial Spaces (Shopping Malls, Retail Stores),Museums and Exhibition Halls,Museums and Exhibition Halls,Office Spaces and Conference Rooms,Hotels and Fine Dining Restaurants and so on.
