BJ-TR2 Track Light Bedroom

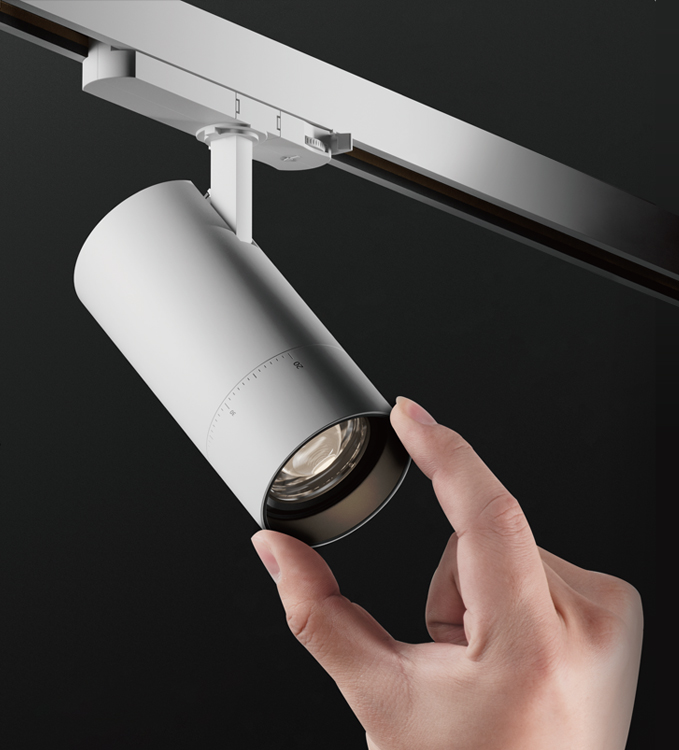

The track light is multi-functional design: ajustable beam angle, changeable color temperature and adjustable brightnees, which can greatly help you to reduce pressure of inventory and cost. Professional optical zoom lens offers a wide range adjustable beam angle. Sliding built-in switch can reach stepless dimming. It is the best choice to use in projects like museum, gallery, and so on.
Features:
Aluminum body profile and heat sink
Air convection design for better heat dissipation
Switch operated color temperature selection 2700K/4000K/6000K
Wide-range adjustable beam angle 25°-65°
Switch operated brightness dimmable 10%-100%
High efficiency brand LED chip, Ra>90
Constant current non-dimmable driver fitted, PF>0.9
Optional regular color: sand white / sand black
90° vertically tiltable and 350° horizontally rotateable
Download
Specification
| Type | BJ-TR6222C- C20W | BJ-TR7221C-C25W | BJ-TR8024C-C35W | ||
| Driver brand | OBALS | OBALS | OBALS | ||
| Power(w) | 20W | 25W | 35W | ||
| Input Voltage(v) | 220-240V | 220-240V | 220-240V | ||
| Frequency(Hz) | 50/60Hz | 50/60Hz | 50/60Hz | ||
| Power Factor (PF) | >0.9 | >0.9 | >0.9 | ||
| Electric class | Class II | Class II | Class II | ||
| SPD (differential-mode and common-mode) L-L /LN-G(kV) IEC61000-4-5 | 1KV | 1KV | 1KV | ||
| THD | <20% | <20% | <20% | ||
| SVM | <1 | <1 | <1 | ||
| PST | <1 | <1 | <1 | ||
| Color Temperature(k) | 27K/40K/50K | 27K/40K/50K | 27K/40K/50K | ||
| Light Efficiency （Tolerance range±10%） | 80lm/w | 100 lm/w | 105lm/w | ||
| CRI | ≧90 | ≧90 | ≧90 | ||
| SDCM | ≤6 | ≤6 | ≤6 | ||
| Beam Angle°(50%) | 24°-60° | 24°-60° | 24°-60° | ||
| LED patent | NO | NO | NO | ||
| LED | TB-1311 | TB7-1917A | TB7-1917A | ||
| LED | 1 | 1 | 1 | ||
| Non-directional or directional (NDLS / DLS) | DLS | DLS | DLS | ||
| Luminous Efficacy(lm/w)@light source | E | E | E | ||
| system lifetime (Hours） | 50khrs(L70B50) | 50khrs(L70B50) | 50khrs(L70B50) | ||
| warranty / Guarantee Period | 5 years | 5 years | 5 years | ||
| ambient temperature Ta for claimed spec | 25ºC | 25ºC | 25ºC | ||
| installation method / mounting type | track mounted | track mounted | track mounted | ||
| Operating Temperature range | - 20ºC < Ta< 40ºC | - 20ºC < Ta< 40ºC | - 20ºC < Ta< 40ºC | ||
| Salty spray | 120H | 120H | 120H | ||
| Replaceable Light Source | NO | NO | NO | ||
| IK Level | 05 | 05 | 05 | ||
| Ingress Protection Rating | 20 | 20 | 20 | ||
| tilt angle | 90° | 90° | 90° | ||
| Certification | CE、RoHS | CE、RoHS | CE、RoHS | ||
Description
LED Track Light Manufacturer
OBALS Lighting factory is a professional led track light manufacturer and led track light supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and led track light OEM/ODM service. professional fixtures are track lighting, led downlight, Pendant Light, Linear Lighting. We are also a professional led downlight manufacturer.
Application Scenarios

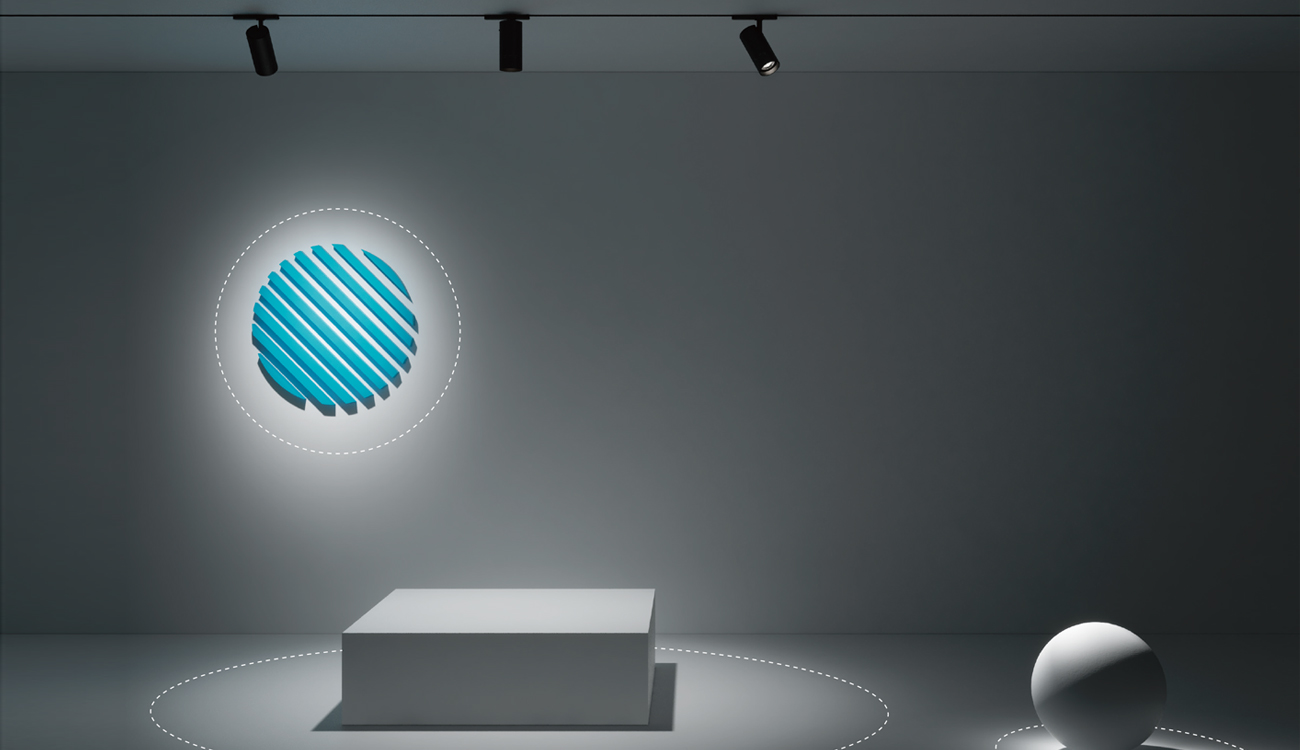

Widely used in hotels, restaurants, shops, offices, supermarkets, museums, art gallery and residental lighting and so on.
