OBS-N81 Recessed Downlight
The LED downlight OBS-N81 series ultra thin design, integrated radiator with good quality, serialized size to meet different floors and scenes.
Features:
High efficiency and brand LED chip
Multi-reflector system for optional beam angl
Different installation solutions available
Constant current non-dimmable driver fitted
Specification
| Model | OBS-N8102A-S8W | OBS-N8104A-S12W | OBS-N8105A-S18W | OBS-N8106A-S24W | OBS-N8108A-S30W | OBS-N8108A-S36W | |
| Power | 8W | 12W | 18W | 24W | 30W | 36W | |
| Dimensions(mm) | Φ85*45mm | Φ110×40mm | Φ166×44mm | Φ190*46mm | Φ228*46mm | Φ228*46mm | |
| Cutout(mm) | Φ70mm | Φ90mm | Φ140mm | Φ160mm | Φ200mm | Φ200mm | |
| CCT | 3000K/4000K/6000K | ||||||
| Input Voltage | AC220-240V 50/60Hz | ||||||
| Material | Die-casting Alumium | ||||||
| IP Rating | IP20 | ||||||
| CRI | ≥80 | ||||||
| PF | >0.9 | ||||||
Description
LED Downlight Manufacturer
OBALS Lighting factory is a professional LED downlight manufacturer and LED downlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED downlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.
Application Scenarios

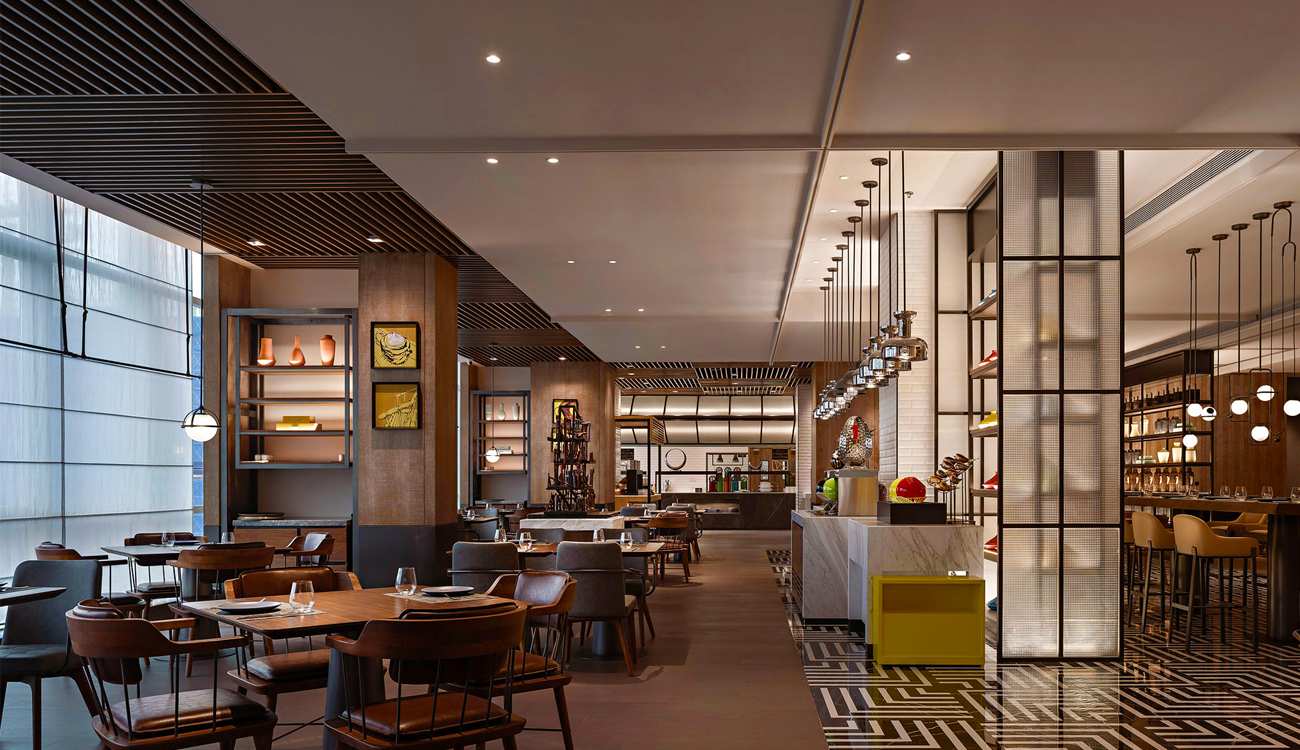

Widely used in hotels, restaurants, shops, offices, supermarkets, living room, kitchen and residental lighting etc.
