Light and Shadow Intertwined: The Perfect Choice for Museum Protection

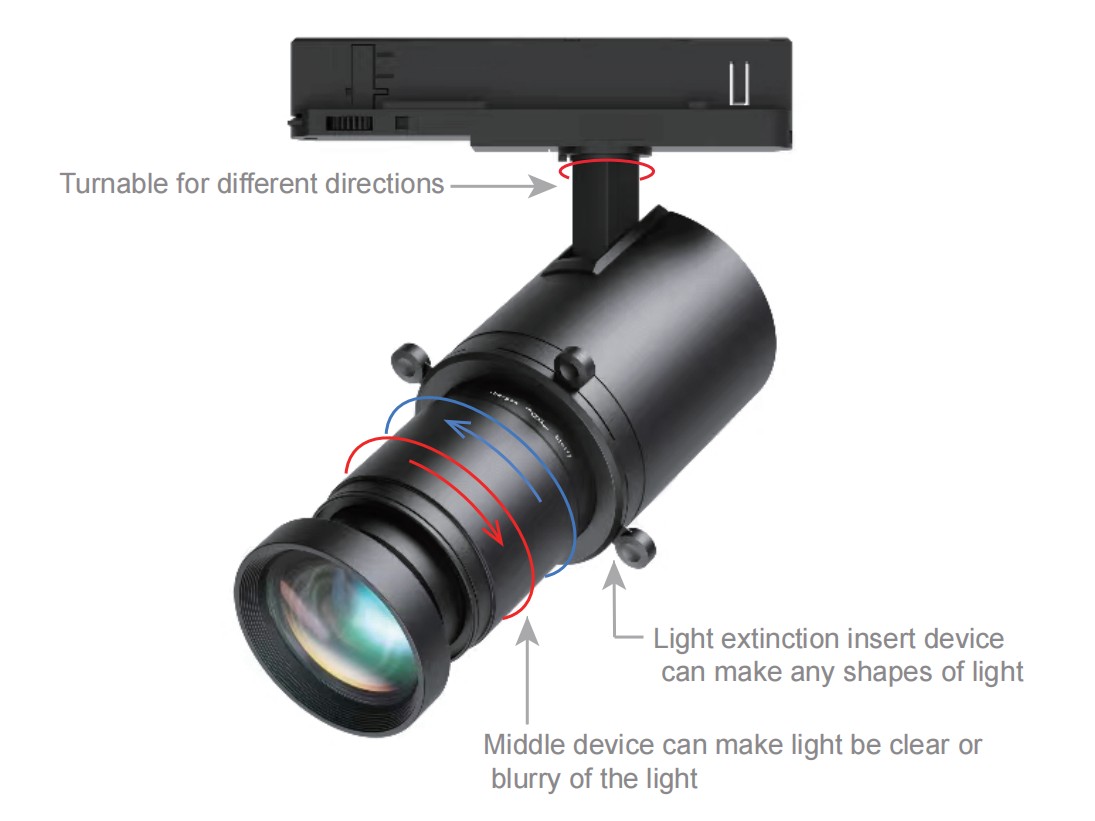

Our cutting-edge track lights feature ultra-wide angle shapeable and high-efficiency zoom capabilities, allowing precise control of beam shapes to meet diverse lighting needs. The high-resolution 1080P+ lens with dual-sided coating ensures excellent color rendering while effectively filtering harmful blue light and gamma rays, protecting artifacts and artworks. Innovative optical technology enhances exhibition value and redefines visual experiences, making it the ideal lighting solution for museums, galleries, and commercial spaces.
Download
Specification
| Type | JGS-GJ-S30W | JGS-GL-S30W |
| Power(w) | 30W | 30W |
| Input Voltage(v) | 220-240V | 220-240V |
| Frequency(Hz) | 50/60Hz | 50/60Hz |
| Power Factor (PF) | >0.9 | >0.9 |
| Classification of protection against electric shock | Class II | Class II |
| SPD (differential-mode and common-mode)L-L /LN-G(kV) IEC61000-4-5 | 1KV | 1KV |
| THD | <20% | <20% |
| SVM | <1 | <1 |
| PST | <1 | <1 |
| Color Temperature(k) | 3000K | 3000K |
| Light Luminous flux | 1009lm | 1009lm |
| Light Efficiency | 35lm/W | 35lm/W |
| CRI | 90 | 90 |
| SDCM (Size of MacAdam ellipse) | ≤6 | ≤6 |
| Beam Angle°(50%) | 23º | 23º |
| LED patent | NO | NO |
| LED | COB | COB |
| Non-directional or directional (NDLS / DLS) | DLS | DLS |
| Luminous Efficacy(lm/w)@light source | NO | NO |
| system lifetime (Hours） | 30khrs | 30khrs |
| warranty / Guarantee Period | 3 years | 3 years |
| ambient temperature Ta for claimed spec | 25ºC | 25ºC |
| installation method / mounting type | troffer mount | troffer mount |
| Operating Temperature range | - 20ºC < Ta< 40ºC | - 20ºC < Ta< 40ºC |
| Replaceable Light Source | NO | NO |
| IK Level | 5 | 5 |
| Ingress Protection Rating | 20 | 20 |
| Certification | CE、RoHS | CE、RoHS |
Description
Our cutting-edge track light is an advanced lighting solution that combines ultra-wide angle shapeable and high-efficiency zoomfunctions, specifically designed to meet a variety of lighting needs. Its unique optical system utilizes multiple lens combinations toensure precise beam control, allowing for flexible adjustment of the light spot shape, making it suitable for commercial displays, museum exhibitions, and art galleriesEquipped with high-resolution 1080P+ lenses featuring dual-sided coatings, this fixture delivers exceptional color rendering, bringing vibrant and true colors to the illuminated objects. Additionally, the track light effectively filters harmful blue light and gamma rays in the 290-400nm range, ensuring that artifacts and artworks are adequately protected from subtle damage caused by prolonged exposure to light.Whether spotlighting focal points or evenly illuminating an environment, our cutting-edge track light can effortlessly adapt to create the ideal atmosphere for any space. Through innovative optical technology and smart control systems, the track light notonly enhances exhibition value but also provides users with an unprecedented visual experience.

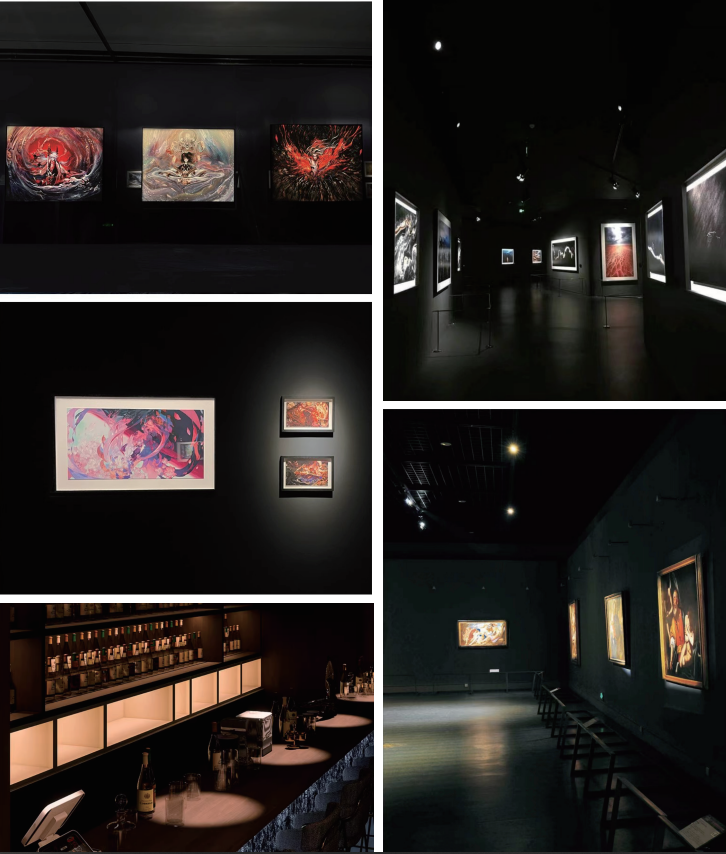

Applications
