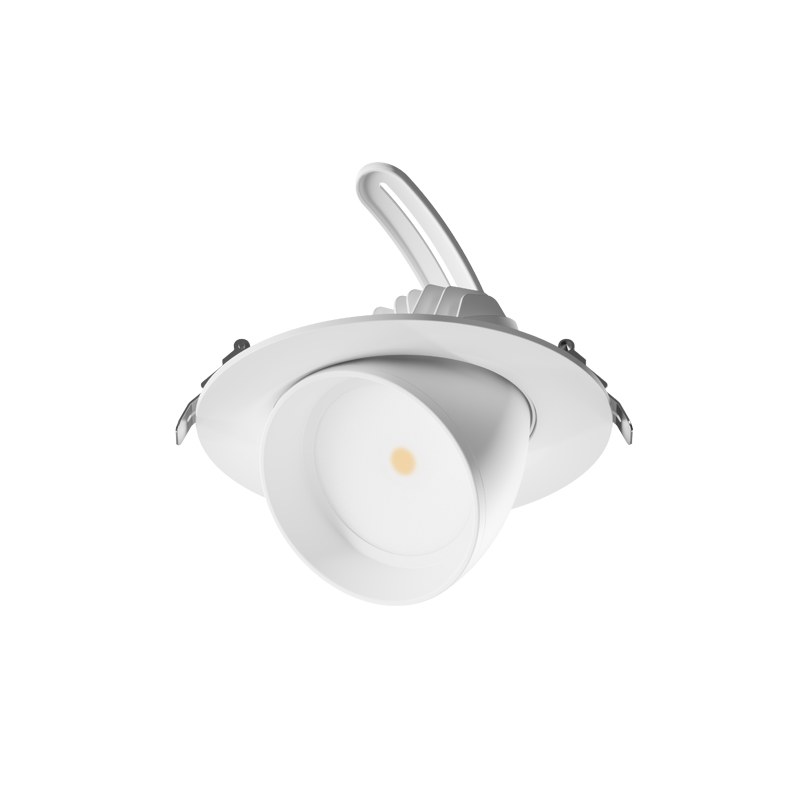

RS-006-CD Mini Spotlight
The LED spotlight RS-006 series with two built-in switch for changing wattage and color temperature, the spotlight shows its cost-effective on saving inventory. Die-casting aluminum shell design makes it with an excellent heat dissipation performance. The design of 60°vertically and 350°horizontally adjustable for different lighting direction. The high efficiency of this spotlight can reach 120lm/w and CRI is greater than 80 for making everything look more real.
Features:
1-CCT and 3-CCT optional
Sing wattage and dual wattage optional
Optics: glass/lens(UGR<19)
High efficiency SMD & COB LED chip, CRI≥80
60° vertically adjustable and 350°rotatable
Dimmable Spotlights IP65 spotlights surface mounted spotlights bathroom led spotlights
Download
Specification
Model | RS-006-CD20W | RS-006-CD28W | RS-006-CD38W | ||
Power(W± 5%) | 20W | 28W | 38W | ||
Input Voltage | AC220-240V50/60Hz | ||||
LED Current(mA) | 500mA | 700mA | 950mA | ||
LED Chip | Bridgelux | ||||
Drive | LIFUD | ||||
CCT | 1 CCT： 3000K/ 4000K /5000K | 3 CCT：2700K & 4000K & 6000K | |||
Beam Angle | 15°/24°/36°/60° | ||||
CRI | Ra≥80 | ||||
Adjustable Angle | 50° Vertical Rotation+350° Horizontal Rotation | ||||
Life Span | 30000 hour | ||||
Finishing Color | White/ Black | ||||
Dimensions(mm) | Ø195×135mm | ||||
Cut-out(mm) | Ø165 mm | ||||
Description
LED Spotlight Manufacturer
OBALS Lighting factory is a professional LED spotlight manufacturer and LED spotlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED spotlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.
Application Scenarios

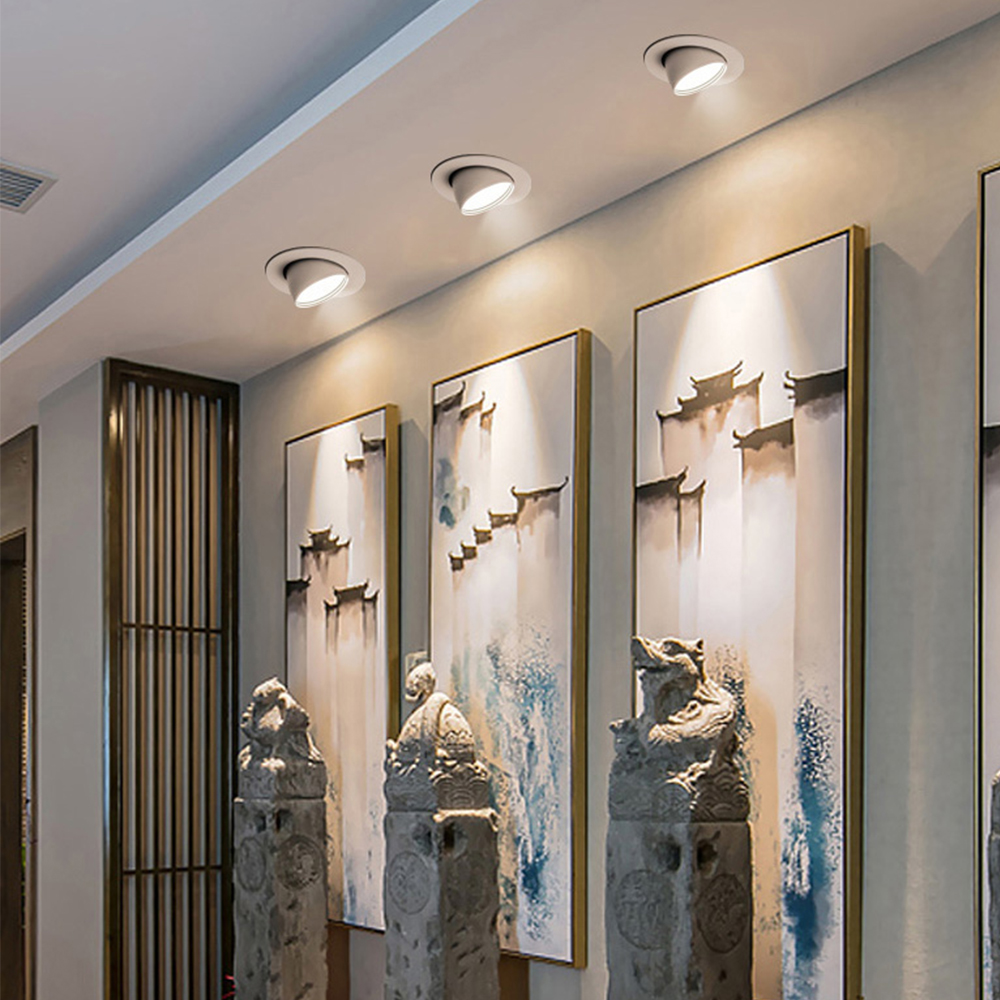

Widely used in hotels, restaurants, shops, offices, supermarkets, living rooms, kitchens and residental lighting etc.
