CFS-009 Ceiling Spotlight
The LED spotlight CFS-009 series with two built-in switch for changing wattage and color temperature, the downlight shows its cost-effective on saving inventory. Die-casting aluminum shell design makes it with an excellent heat dissipation performance, and the power can be 60W at MAX. Different optional optics provide different optical performance, and changeable lighting orientation with 60°vertical direction meet different lighting needs.
Features:
1-CCT and 3-CCT optional
Sing wattage and dual wattage optional
Optics: Glass/Diffuser/Reflector(UGR<19)
High efficiency SMD & COB LED chip, CRI≥80
Die-casting aluminum shell, with excellent heat dissipation performance
Download
Specification
| Type | CFS-009-S38W | CFS-009-S48W | CFS-009-S60W | |
| Power(w) | 28W&38W | 38W&48W | 45W&60W | |
| Light Luminous flux （Tolerance range±10%） | 3710lm@3000K 4221lm@4000K 3792lm@5700K | 4559lm@3000K 4830lm@4000K 4794lm@5700K | 5723lm@3000K 6095lm@4000K 5964lm@5700K | |
| Light Efficiency （Tolerance range±10%） | 97lm/w@3000K 114lm/w@4000K 103lm/w@5700K | 97lm/w@3000K 105lm/w@4000K 102lm/w@5700K | 97lm/w@3000K 105lm/w@4000K 102lm/w@5700K | |
| Input Voltage(v) | 220-240V | |||
| Frequency(Hz) | 50/60Hz | |||
| Power Factor (PF) | >0.9 | |||
| Classification of protection against electric shock | Class II | |||
| SPD (differential-mode and common-mode) L-L /LN-G(kV) IEC61000-4-5 | 1KV | |||
| THD | <20% | |||
| SVM | <1 | |||
| PST | <1 | |||
| CRI | 90 | |||
| SDCM (Size of MacAdam ellipse) | ≤5 | |||
| Beam Angle°(50%) | 103º | |||
| LED patent | NO | |||
| LED | 2835 | |||
| Non-directional or directional (NDLS / DLS) | DLS | |||
| Luminous Efficacy(lm/w)@light source | E | |||
| system lifetime (Hours） | 30khrs | |||
| warranty / Guarantee Period | 3 years | |||
| ambient temperature Ta for claimed spec | 25ºC | |||
| installation method / mounting type | troffer mounted | |||
| Operating Temperature range | - 20ºC < Ta< 40ºC | |||
| Replaceable Light Source | NO | |||
| IK Level | IK05 | |||
| Ingress Protection Rating | IP20 | |||
Description
LED Spotlight Manufacturer
OBALS Lighting factory is a professional LED spotlight manufacturer and LED spotlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED spotlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.
Application Scenarios

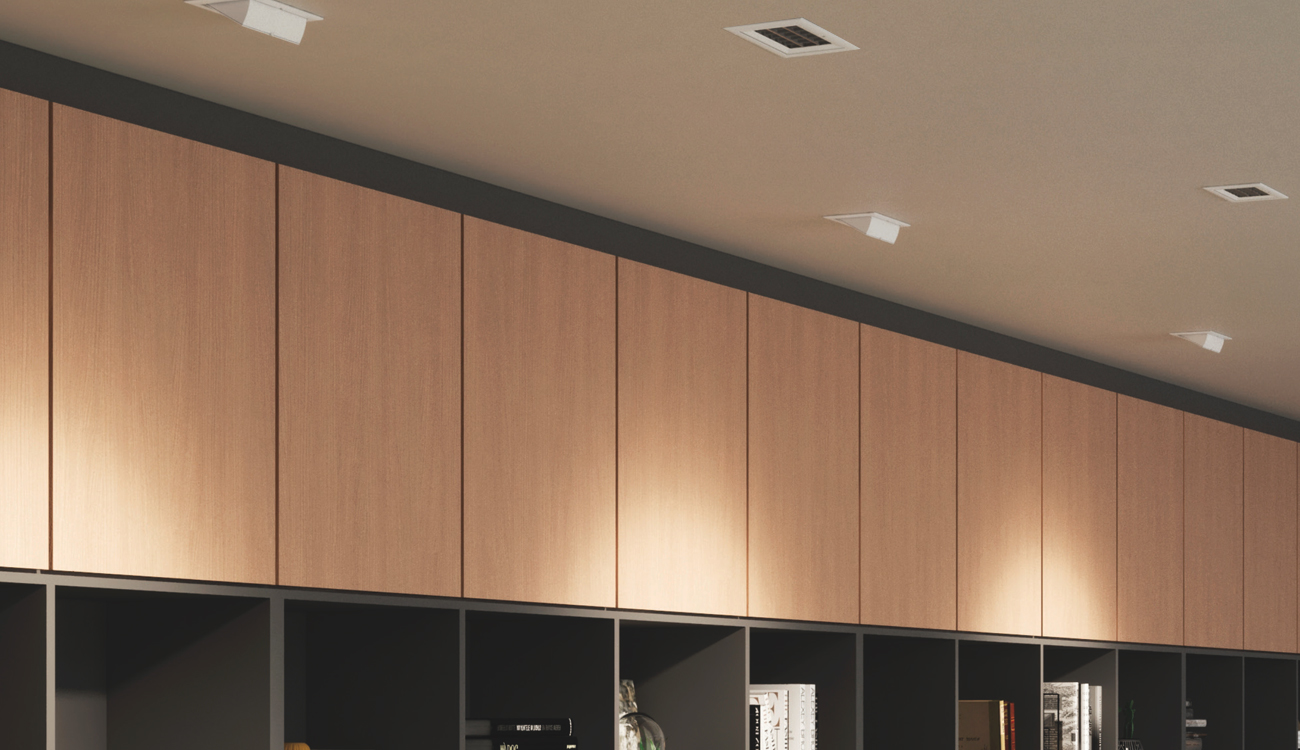

Widely used in hotels, restaurants, shops, offices, supermarkets, living rooms, kitchens and residental lighting etc.
