YS-DL-C Bathroom Downlight
The LED downlight YS-DL-C series new structure with compact and prtable design, Varisized hole size for your option, it can fully meet different requirements. Round frame and square frame for your choose.
Features:
IP20 and IP44 for surface
5 different sizes with wattage from 6W to 48W
DC connector design, it is easy for replacement
1CCT and also 3CCT changeable available, 3000K,4000K,5700K,which reduces your inventory costs
Widely used in hotels, shops, offices , museums and residential lighting and so on
Download
Specification
| Model | YS-DL05M-C15W | YS-DL06M-C20W | YS-DL08M-C24W |
| Prower (±10%) | 15W | 20W | 24W |
| Input Voltage | 220-240V | 220-240V | 220-240V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor(PF) | >0.9 | >0.9 | >0.9 |
| Class | II | II | II |
| SPD (IEC61000-4-5) | 1KV | 1KV | 1KV |
| THD | <20% | <20% | <20% |
| SVM | <1 | <1 | <1 |
| PST | <1 | <1 | <1 |
| Drive | High efficiency | High efficiency | High efficiency |
| Color Temperatuer(K) | 27K/40K/60K | 27K/40K/60K | 27K/40K/60K |
| Light luminous flux (±10%) | 1180 lm@2700K 1280 lm@4000K 1330 lm@6000K | 1715 lm@2700K 1834 lm@4000K 1865 lm@6000K | 2125 lm@2700K 2330 lm@4000K 2350 lm@6000K |
| Light efficiency (±10%) | 85 lm/w@2700K 96 lm/w@4000K 95 lm/w@6000K | 88 lm/w@2700K 99 lm/w@4000K 98 lm/w@6000K | 96 lm/w@2700K 105 lm/w@4000K 100 lm/w@6000K |
| CRI | >90 | >90 | >90 |
| SDCM | <6@27K/60K | 6@27K/60K | 6@27K/60K |
| Beam angle (50%) | 75° | 75° | 75° |
| LED | COB | COB | COB |
| NDLS / DLS | DLS | DLS | DLS |
| Luminous efficacy(lm/w) @light source | G@2700K F@4000K F@6000K | G@2700K F@4000K F@6000K | G@2700K F@4000K F@6000K |
| system lifetime(Hours) | 30000 hrs | 30000 hrs | 30000 hrs |
| Warranty / Guarantee period | 3 years | 3 years | 3 years |
| Ambient temperature Ta for claimed spec | 25℃ | 25℃ | 25℃ |
| Installation method | troffer mount | troffer mount | troffer mount |
| Operating Temperature range | -20℃<Ta<40℃ | -20℃<Ta<40℃ | -20℃<Ta<40℃ |
| Operation per day(on/off time and working duration) | 1switch cycle per day,8-10hrs working | 1switch cycle per day,8-10hrs working | 1switch cycle per day,8-10hrs working |
| Replaceable Light Source | NO | NO | NO |
| IK Level | 05 | 05 | 05 |
| Ingress Protection Rating | 20 | 20 | 20 |
| Certification | CE、RoHS | CE、RoHS | CE、RoHS |
Description
LED Downlight Manufacturer
OBALS Lighting factory is a professional LED downlight manufacturer and LED downlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED downlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.
Application Scenarios

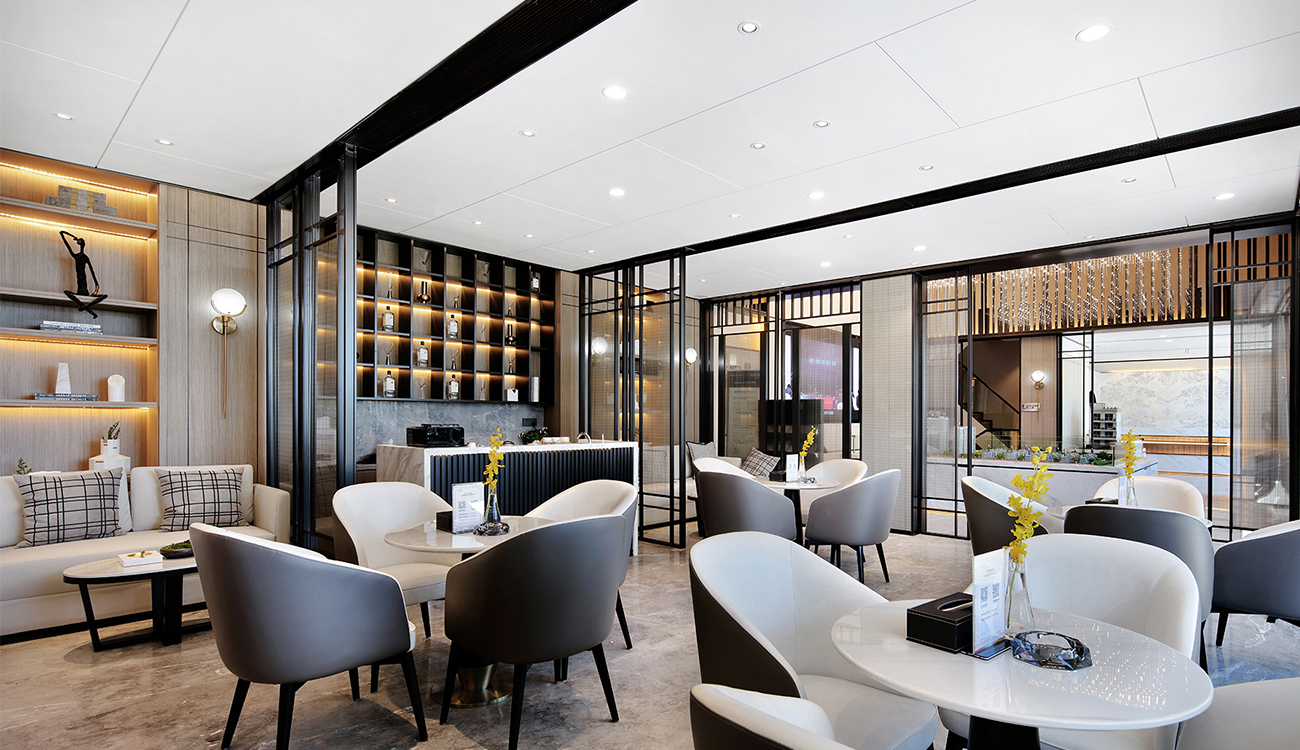

Widely used in hotels, restaurants, shops, offices, supermarkets, living room, kitchen and residental lighting etc.
